Mapping Tuned ECU <br> Suzuki Swift Sport ZC33S K14C <br>2018-2020

CTC Performance - ECU Tuning / Mapping Service VIA POSTAL SERVICE UK ONLY

We now offer a postal remap service for Suzuki Swift Sport ZC33S K14C Boosterjet Engine.

AFTER YOU HAVE PLACED YOUR ONLINE ORDER EMAIL YOUR FULL RETURN ADDRESS, MODIFICATION LIST AND DATE YOU ANTICIPATE YOU WILL SHIP YOUR ECU. WE WILL THEN CONFIRM SHIPPING ADDRESS AND MAKE THE ARRANGEMENTS.

We update the following:

• Fuel Map Adjustment
• Air Fuel Ratio Control Map
• Ignition Map
• VVT Map
• Boost Control Map raise from 1.0bar to 1.2bar
• Boost Limiter Change
• Torque Control Map
• Throttle Control Map
• Rev Limit raised from 6000rpm to 6300rpm
• Speed Limiter raised from 220kmph to 280kmph

While the factory official figures suggest 140ps in reality these cars make close to 155ps. Starting with 154ps with these changes we found an increase in Peak Power of 16PS and Peak Torque of 32nm however lower in the rev range we found an extra 21ps and 42nm! The end result a healthy 170PS and 280NM Torque!

Simply remove your OEM Bosch ECU (for guidance please contact us), arrange suitable dates to send your ecu, we can usually map the ecu next day so you will be without your car for 3-4 days. Ship the ECU on agreed date and reinstall once you recieve. When you make your order please email us to arrange suitable date and please advise what modifications you have carried out or have planned for your vehicle.

IF YOU WOULD LIKE THE CAR MAPPED ON ROLLING ROAD PLEASE CONTACT US AS THIS IS DONE DIRECT WITH THE DYNO OPERATOR WE USE.

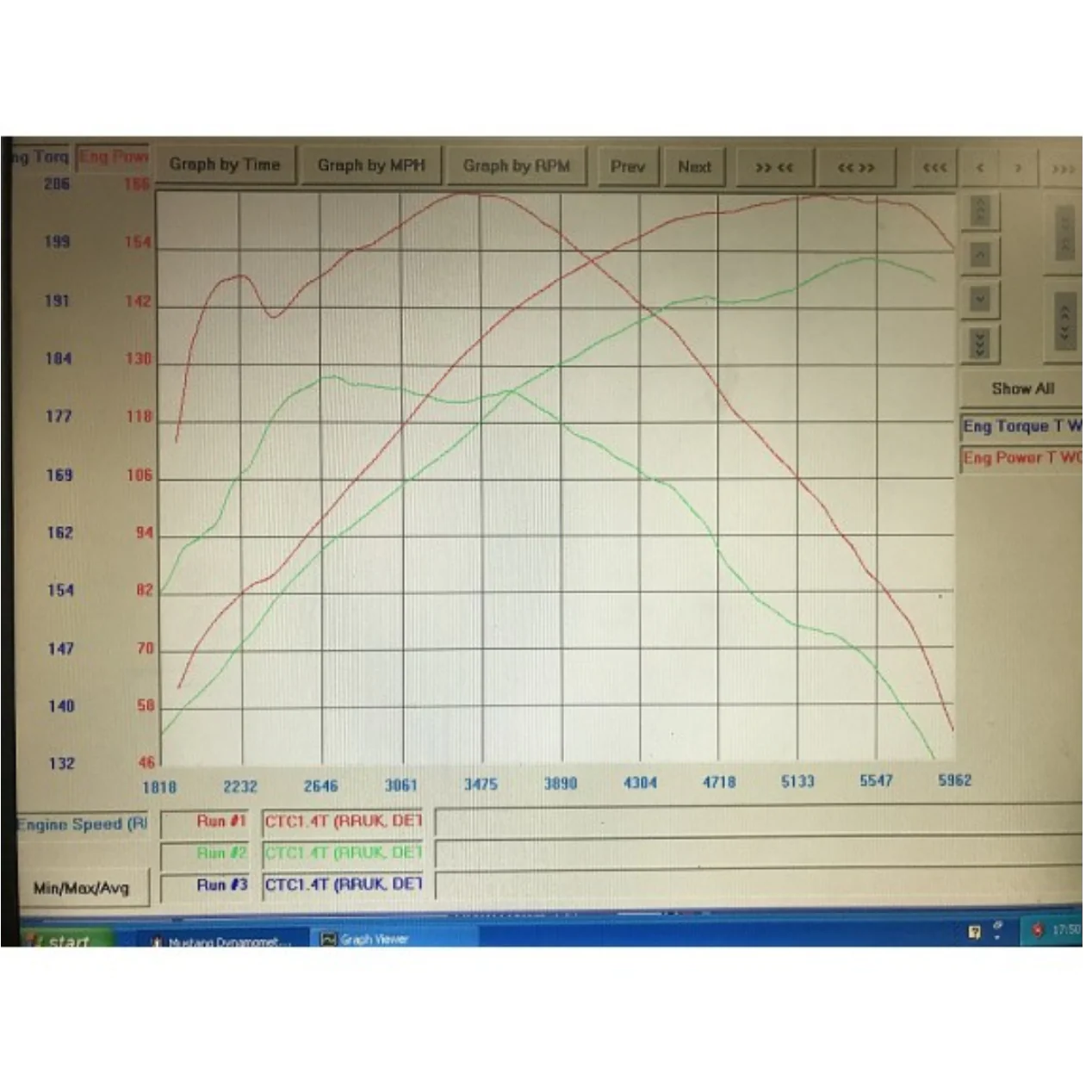

*Dyno plot pictured in BHP and ft lb
